Linear Scale, KA 300 0.001mm Linear Scale KA300 570mm TTL 1um Optical Encoder Sensor Ruler

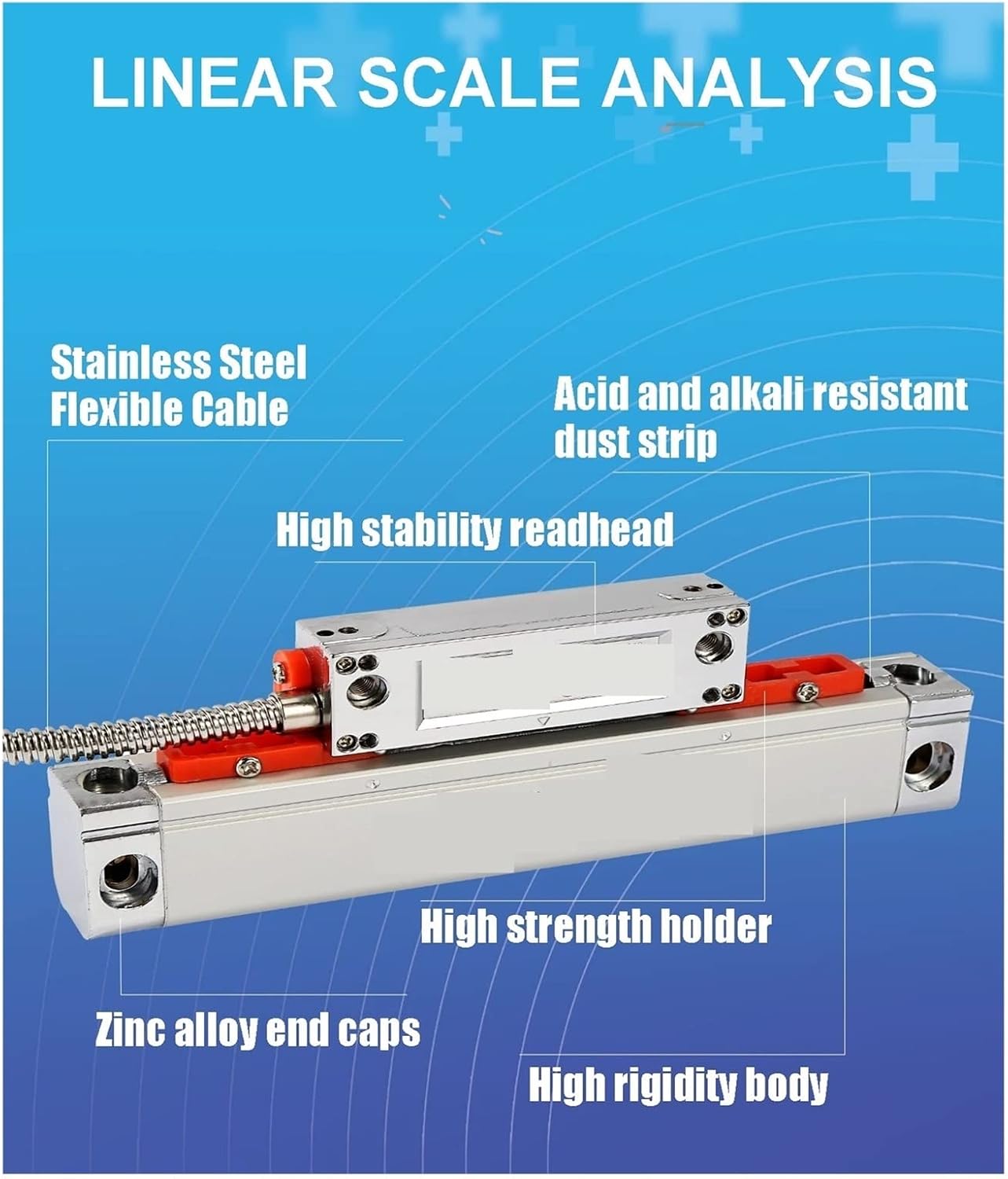

KA-300 is a type of encoder with wide applications. It features in optimal structure, good appearance and high rigidity, able to meet the needs of the majority of general machine users. The length is 570mm. Parameter Product name: KA-300 Linear scale Available Measrus Length: 570 Cross Section: 25mm X 34mm Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm) Max of Measuring speed: 60m/min Protection level: IP55 Resolution: 1um(0.001mm) Output signal: TTL Cable standard: 3 meters Bar Pitch: 0.02mm Power: +5V±5%, 80mA Operating temperature:0-45 degree centigrade Connetor: 9 Pins Package Content -1pcs KA-300 scale -1pcs scale cover -1pcs mounting bracket -1pcs screw bag

• Professional design, beautiful appearance generous, counts the frequency response is fast and powerful.
• Die-casting alloy shell, the surface electric pensu processing, dustproof wear-resisting, good shielding.
• Professional design, independent power supply, to adapt to the range, high stability, strong anti-jamming capability.
• Power supply and signal anti-interference ability, and panel of buttons, change is simple and convenient.
• Directly on the digital table for functional operation functions such as sine, cosine, tangent function, convenient
