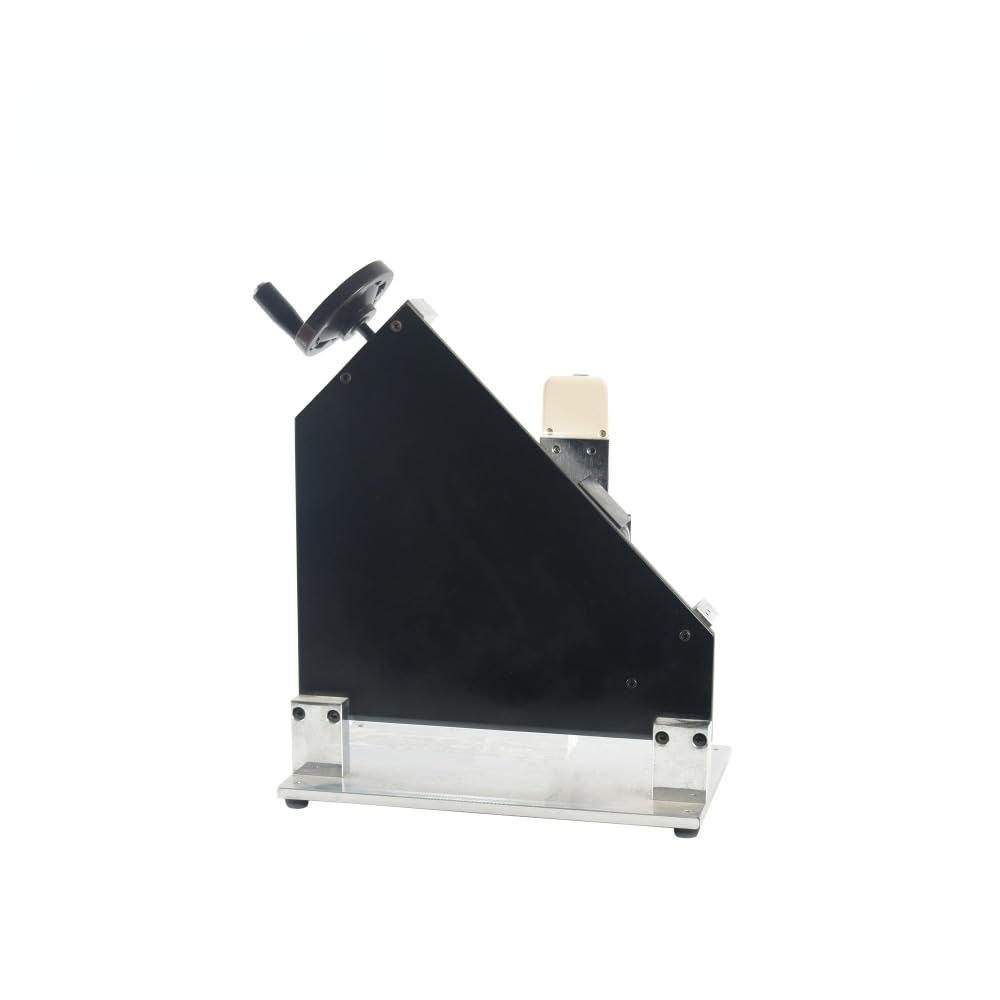

500N 90-Degree Manual Peel Strength Tester - Professional Force Gauge Testing, Easy Operation, Robust Stability

ABL peeling force test bench is designed for NK, HF series push and pull equipment, which can be combined into test machines with different purposes. It is especially used for printed circuit boards on foil circuit adhesion or the firmness of tin foil, aluminum foil, adhesive tape, etc. against the surface of an object. In view of vertical profiling of test samples. Measurement of the actual strength. Models: Abreu Power:Water-powered G.W:22 kilograms Size:49X41X80 centimeters Test effective area:105*100 mm, up to 105*152 mm Effective stroke:150mm Maximum load:500N Dimensions:350*210*450 mm Net weight:19 kg Type:ABL-500N Accuracy:±0.5%

• Main parameters: Tested effective area: 105mm * 100mm, maximum up to 105mm * 152mm, effective stroke: 150mm, Max. Load: 500N, accuracy: ± 0.5%.
• The Force Gauge peel force test bench is specially designed for NK and HF series push-pull equipment and can be combined into testing machines for different purposes. Specially used for PC board circuit adhesion on aluminum foil or surface hardness of tin foil, aluminum foil, tape and other impact objects. View vertically dissected test specimen. to measure actual strength.
• Features: 1. Manual operation, ladder screw transmission, simple and stable operation. 2. The frame can be installed on the table to make the test bench more stable.
